Stainless Steel

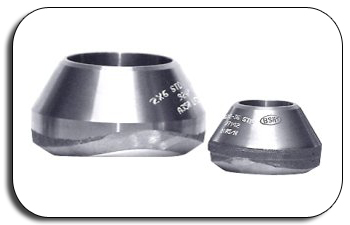

Olets

Olets Branch Connection Pipe Fittings are manufactured by Rajasthan Steel. Olets Branch Connection are used in Petrochemical Industry for high pressure applications and durability for long life of the product. Olets are maintained as per international and custom specifications..

Branch Connection fittings (also known as Olets) are fittings which provide an outlet from a larger pipe to a smaller one (or one of the same size). The main pipe onto which the branch connection is welded is usually called the Run or Header size. The pipe to which the branch connection provides a channel is usually called the Branch or Outlet size. Branch connections are in all sizes, types, bores, and classes, in a wide range of stainless steel, chrome-moly, and other alloys.
Material : Stainless Steel : SS304 , SS316

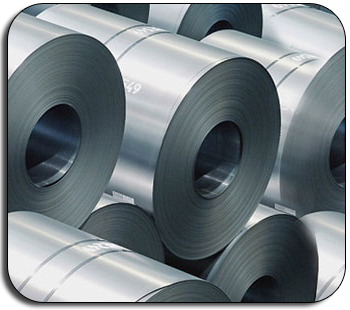

 Stripper & Coils
O

We offers a very comprehensive stainless steel strip & stainless steel coil mix. Most of the stainless steel strips and stainless steel coils are tailor made to cater the need of various Industrial/Commercial segments.

Grade :	AISI 200, 300 & 400 series.
Thickness :	0.15 mm to 3.50 mm
Width :	250mm to 750 mm (Mill Edge) 5.0mm to 750 mm (Slit Edge)
Finish :	2D Cold rolled stainless steel strips annealed & pickled 2B Cold rolled stainless steel strips annealed & skin passed 2R work harden for specific hardness
Hardness :	Annealed-pickled(soft), 1/4 hard, 1/2 hard, 3/4 hard & full hard  (as rolled)
Weight :	50 kg to 4 M.T.
Coil ID :	150 mm to 510 mm depending on thickness & width of coil.
Length :	In Coil Form.
Tolerance in Weight :	Max 6.5 kg per mm width of strips depending on required thickness & width of the coil.

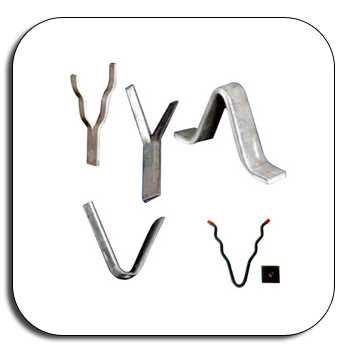

 Refactory Anchor

We produce a wide range of standard anchoring systems, to match all types of lining. We offer anchors suitable for single and dual layer lining, brick, ceramic, fibre and Castable refractory.

All refractory anchoring systems are produced in SS 304, SS 310, Alloy 601 and other heat resistant alloys.

CASTABLE Refractory Anchors

Castable refractory anchors come in various shapes and sizes, but they are generally V & Y type construction anchors to hold monolithic refractory in the furnaces, boilers and other applications. These are of Cast or Fabricated from Wire rods or strips.

Here we are giving some sketches of various kinds of anchors for your ready reference.

V-ANCHOR FOR LIGHT WEIGHT CASTABLE	HAND REFRACTORY TILE FROM I-BEAM ARCH
LIGHT CASTABLE BRICK ANCHOR	CRIMP ROD, USED IN THIN CASTABLE LINING
FLAT BASED V FOR LIGHT CASTABLE	STEELHORN HAND WELD V ANCHOR FOR LIGHT WEIGHT CASTABLE
BULLHORN FOR LIGHT TO MEDIUM CASTABLE	STAND OFF ANCHOR FOR HEX STEEL
SPLIT TINE TWO-COMPONENT LINING	HL314 USED TO ANCHOR TILE IN HIGH DENSITY LININGS
Y-ANCHOR, STUD WELD Y ANCHOR	WNV ANCHOR WITH NUT TACK WELDED ON
HAND WELD WAVY V FOR LUGHT-MED CASTABLE	WNV ANCHOR WITH NUT TACK WELDED ON
FOOTED V MED-HVY CASTABLE	½” THREADED STUD WITH TWO SQUARE NUTS
FOOTED V MED-HVY CASTABLE	THREADED STUD USED IN A VARIETY OF APPLICATIONS
DOUBLE-HOOK STUD WELD	HEX BOLT, FLAT, WASHER & HEX NUT AVAILABLE IN VARIETY OF ALLOYS
HAND WELD V FOR LIGHT MED CASTABLE	FOOTED DOUBLE HOOK CASTABLE ANCHOR FOR PETROCHEMICAL LININGS
HAND WELD STEERHORN LIGHT WEIGHT CASTABLE	CHRISTMAS TREE ANCHOR
HL307 NUTTED V ANCHOR USED WITH THREADED STUD	PUSH-ON CLIP SPEED CLIP USED AS HOT FACE RETAINER, PRESS ON CLIP
HL308 NUTTED V ANCHOR USED EITH THREADED STUD	FLEXI ANCHOR PAT. PEND
HL309 NUTTED V ANCHOR USED EITH THREADED STUD	FLEXI ANCHOR PAT. PEND
HAND WELD DOUBLE HOOK ANCHOR	FLEXI ANCHOR PAT. PEND
HL303 ANCHOR FIRE BRICK TO METAL CASING	UNIQUE NUTTED V ANCHOR
HL301 ANCHOR FIRE BRICK TO METAL CASING	FLEXI ANCHOR PAT. PEND
HL301 ANCHOR FIRE BRICK TO METAL CASING	FLEXI ANCHOR PAT. PEND
HL304 ANCHOR FIRE BRICK TO METAL CASING

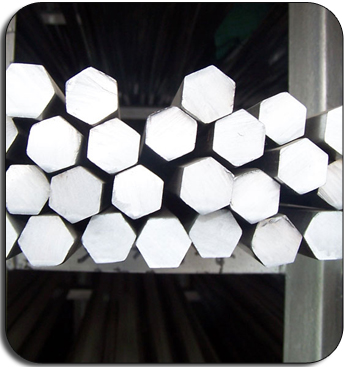

  Hex Bar

Rajasthan Steel inventories stainless hex bar from 3/16″ thru 3″ in 303, 304/L, 316/L, 410, 416, and 440C stainless. In many sizes, stainless hex is available in our proprietary brand of machining bars:

Inventory for Hex Bar

Size in Inches	Wt per Ft	Wt per 12′	303	304/L	316/L	416
3/16″	0.104	1.248	X	X	X	X
1/4″	0.180	2.160	X	X	X	X
5/16″	0.290	3.480	X	X	X	X
3/8″	0.410	4.920	X	X	X	X
7/16″	0.560	6.72	X	X	X	X
1/2″	0.740	8.880	X	X	X	X
9/16″	0.930	11.16	X	X	X	X
5/8″	1.150	13.80	X	X	X	X
11/16″	1.390	16.68	X	X	X
3/4″	1.660	19.92	X	X	X	X
13/16″	1.950	23.40	X	X	X
7/8″	2.300	27.60	X	X	X	X
15/16″	2.600	31.20	X	X	X	X
1″	2.90	34.80	X	X	X	X
1-1/16″	3.30	39.60	X	X	X	X
1-1/8″	3.700	44.40	X	X	X	X
1-1/4″	4.600	55.20	X	X	X	X
1-5/16″	5.100	61.20	X	X	X
1-3/8″	5.600	67.20	X	X	X	X
1-7/16″	6.100	73.20	X	X	X
1-1/2″	6.600	79.20	X	X	X	X
1-5/8″	7.800	93.60	X	X	X
1-3/4″	9.030	108.36	X	X	X	X
1-7/8″	10.400	124.80	X	X	X	X
2″	11.80	141.60	X	X	X	X
2-1/4″	14.920	179.04	X	X	X	X
2-3/8″	16.920	203.04	X	X	X
2-1/2″	18.42	221.04	X	X	X	X
3″	26.53	318.36	X	X	X	X



• Hex Bar can be cut to size.
• Hex Bar can be polished per customers specifications.

Stainless Steel Hex Bar Specifications ASTM A276 This specification encompasses cold-finished or hot-finished bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels. ASTM A479 This specification includes cold and hot finished stainless steel bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels. ASTM A484 This specification includes wrought stainless steel bars, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions. ASTM A582  This specification includes cold or hot finished bars, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels. ASTM B473  This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition.

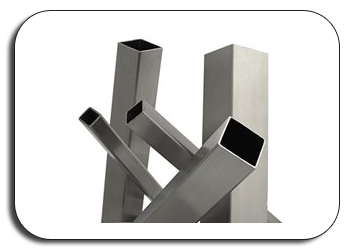

 Hollow Section

We offers a wide range of high quality hollow sections in stainless steel. Use the filter at the left side of this page to easily find a hollow section that fits your requirements.

Photo	Product name	Grade
	Square box	304 316 316L 316TI
	Square box, polished G320	304 316 316L 316TI
	Square box, mirror polished	304 316 316L
	Rectangular box	304 316 316L 316TI
	Rectangular box, brushed	304 316L 316TI
	Rectangular box, polished G320	304 316 316L 316TI
>	Rectangular box, mirror polished	304 316L 316TI
	Flatoval tube, welded	304



Customise Fabrication

Custom Fabrication, Incorporated takes pride in being your one stop source for all of your architectural & metal site furnishing needs. CFI provides in-house engineering and manufacturing with computer controlled machinery to produce your product to exact tolerance and specifications. For our customers this means, perfect fitting parts which are also attractive, making your project a complete success!

We offer a full line of over 90 standard products that are available at one half to two thirds the cost of the competition making our product extremely cost effective without affecting quality. We're also proud to boast that most items are available within a swift 2–4 week time frame. All of our products are value engineered and manufactured on state of the art machinery to produce our site furnishings to exact specifications.
